Product Description

Crude Petroleum and Liquid Petroleum Products Tester of Density, Relative Density (Specific Gravity), or API Gravity by Hydrometer Method
(Model DST-3000)

Application
DST-3000 petroleum products density tester is designed and made as per the National Standard GB/T 1884-2000 " and ASTM D1298 Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter methods)". Using a densimeter, it is widely applied to determine the density of liquid petroleum products such as lubricating oil, hydraulic oil, diesel fuel, transformer oil etc.

Technical parameters

Power supply	AC 220V±10%, 50 Hz (Customizable)
Bath size	Inner Dia.300 mm×340 mm
Testing tube	500 ml,1000ml(1000ml need to be customized)
Heating power	700 W, 1000 W
Temperature controller	Temperature controlling range: 0 °C~100 °C
	Temperature controlling accuracy: ±0.1 °C
	Temperature sensor: Industrial platinum resistance;scale number: Pt100
Thermometer	It is a total immersed mercury thermometer having scale division of 0.2 °C
Ambient temperature	-10 °C~+40 °C, Temperature fluctuation ≤ 2 °C
Relative humidity	≤85%
Dimension	775595cm
Weight	32kg

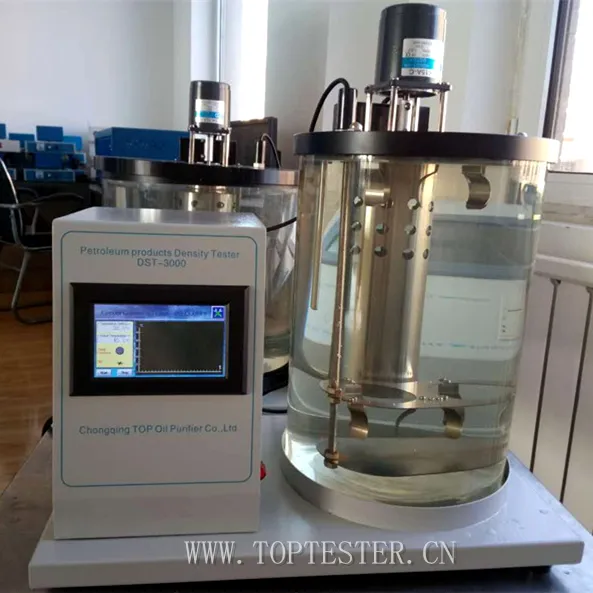

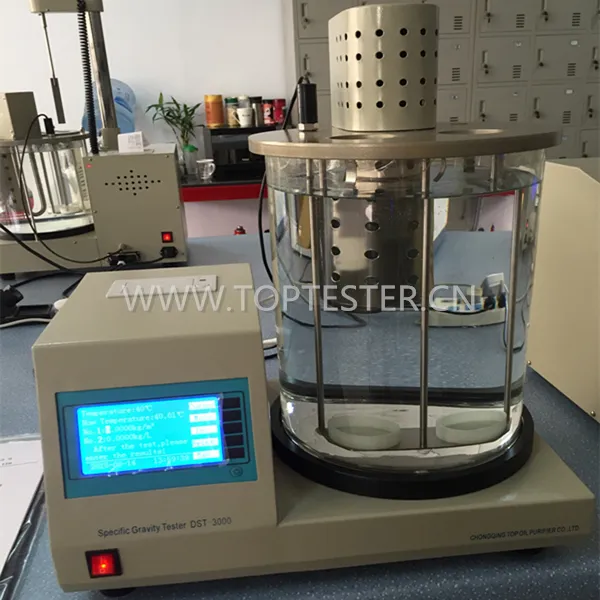

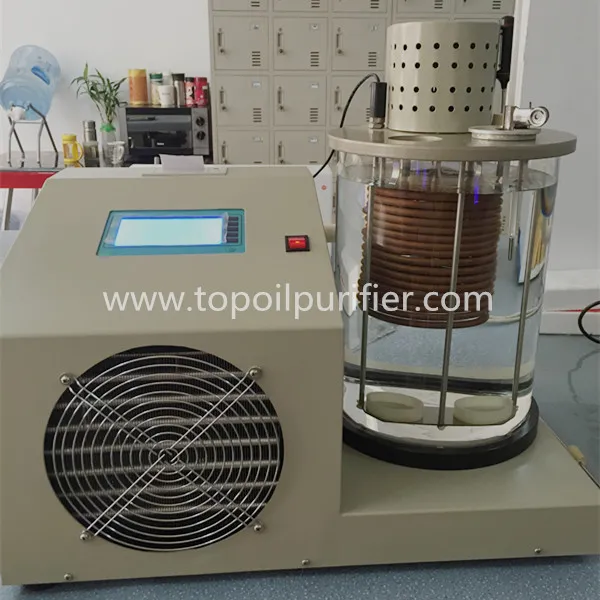

Product photograph

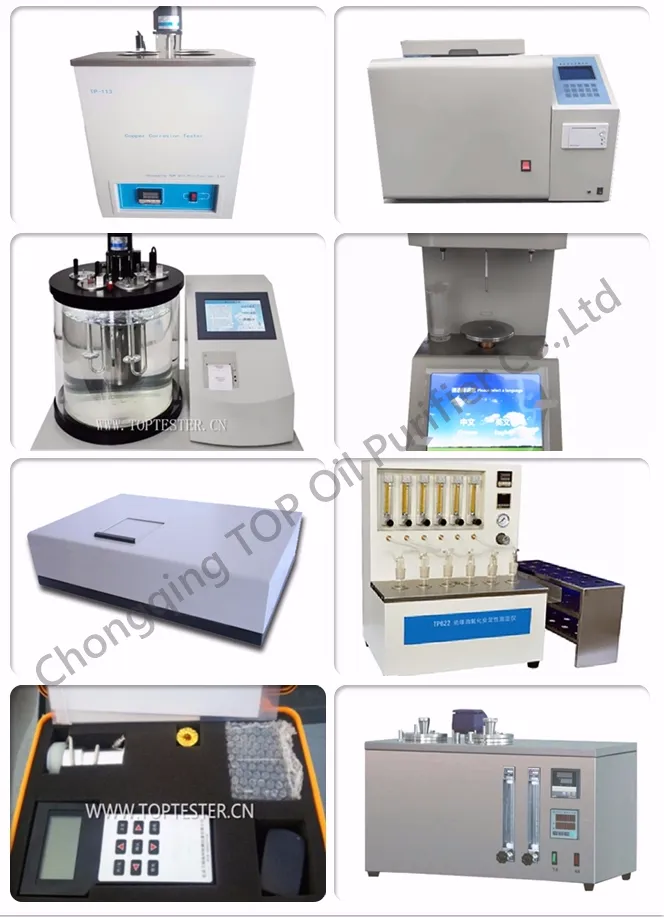

Our Main Petroleum Products General Testers (We supply much wider range of testing equipment than the following)
1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Digital Karl Fischer Water Content Tester TP-6A
3.Kinematic Viscosity Tester VST-2000
4.Kinematic Viscosity Tester TPV-8
5.Kinematic Viscosity Tester VST-3000
6.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.Fully Automatic Surface/Interface Tension Tester IT-800
8.Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.Fully Automatic Open Cup Flash Point Tester TPO-3000
10.Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.Digital Open Cup Flash Point Tester TPO-100
12.Digital Closed Cup Flash Point Tester TPC-100
13.Cloud Point & Pour Point Tester PT-2000
14.Multi-functional Vibration Tester VBT-2000
15.Automatic Potentiometric Titrator TP668
16.Petroleum Products Density Tester DST-3000
17.Petroleum Products Density Tester TP-109A
18.Karl Fischer Volumetric Water Content Titrator TPD
19.Distillation Range Tester DIL-201
20.Online Oil Quality Tester PTT-002
21.Liquid Phase Corrosion Tester TPS-05
22.Copper Corrosion Tester TP-113
23.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
24.Dew Point Tester DPME-P
25.Portable Chilled Mirror Dew Point Tester TP-1500
