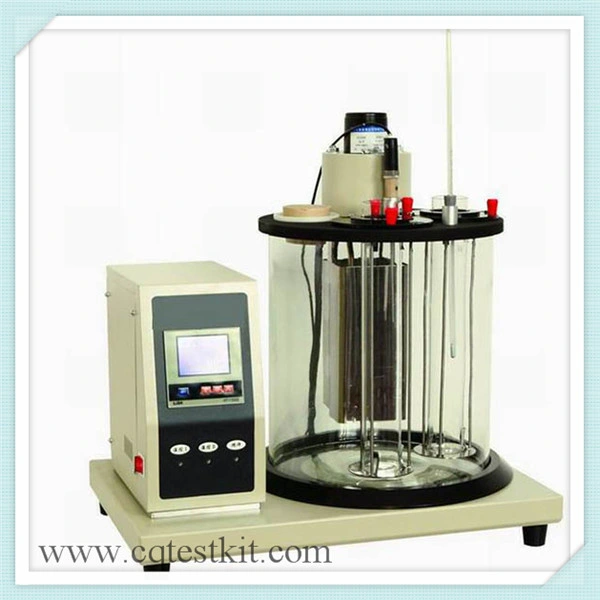

Gd-1884 Petroleum Products Density Tester, Oil Density Meter

GD-1884 Petroleum Products Density Tester

Introduction:
GD-1884 Liquid Petroleum Density Meter/ Densitometer is designed and made as per the National Standard GB/T 1884-2000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter Methods)".
It is suitable to determine density of liquid petroleum products using a densimeter.

Working condition:
V Ambient temperature: -10Centigrade ~ +40Centigrade; The temperature should not change for more than ± 2Centigrade;
V Relative humidity: ≤ 85%;
V The instrument should be placed on a flat workbench during operation and please try your best to reduce air convection during a test.
V If the instrument is not used for a long time, please store it at a dry place.

V Specifications:
V Power supply: AC 220V± 10%, 50 Hz;
V Cubage of bath: 300× 380 mm;
V Heating power: 700 W; 1000 W;
V Temperature controller:
A. Temperature controlling range: 0Centigrade~100Centigrade;
B. Temperature controlling accuracy: ± 0.2Centigrade;
C. Temperature sensor: Industrial platinum resistance, Pt100;
D. Thermometer: Total immersion mercury thermometer with scale division of 0.2 Centigrade
