Manual Type Low Temperature Kinematic Viscometer
Product DescriptionManual Type Low Temperature Kinematic ViscometerApplicationThe manufacturing of this instrument complies with the provisions of the People's Republic of China Industry Standard SY/T5651 and the People's Republic of China Standard GB/T265 "Petroleum Products Kinematic ......
Send Inquiry
Product Description

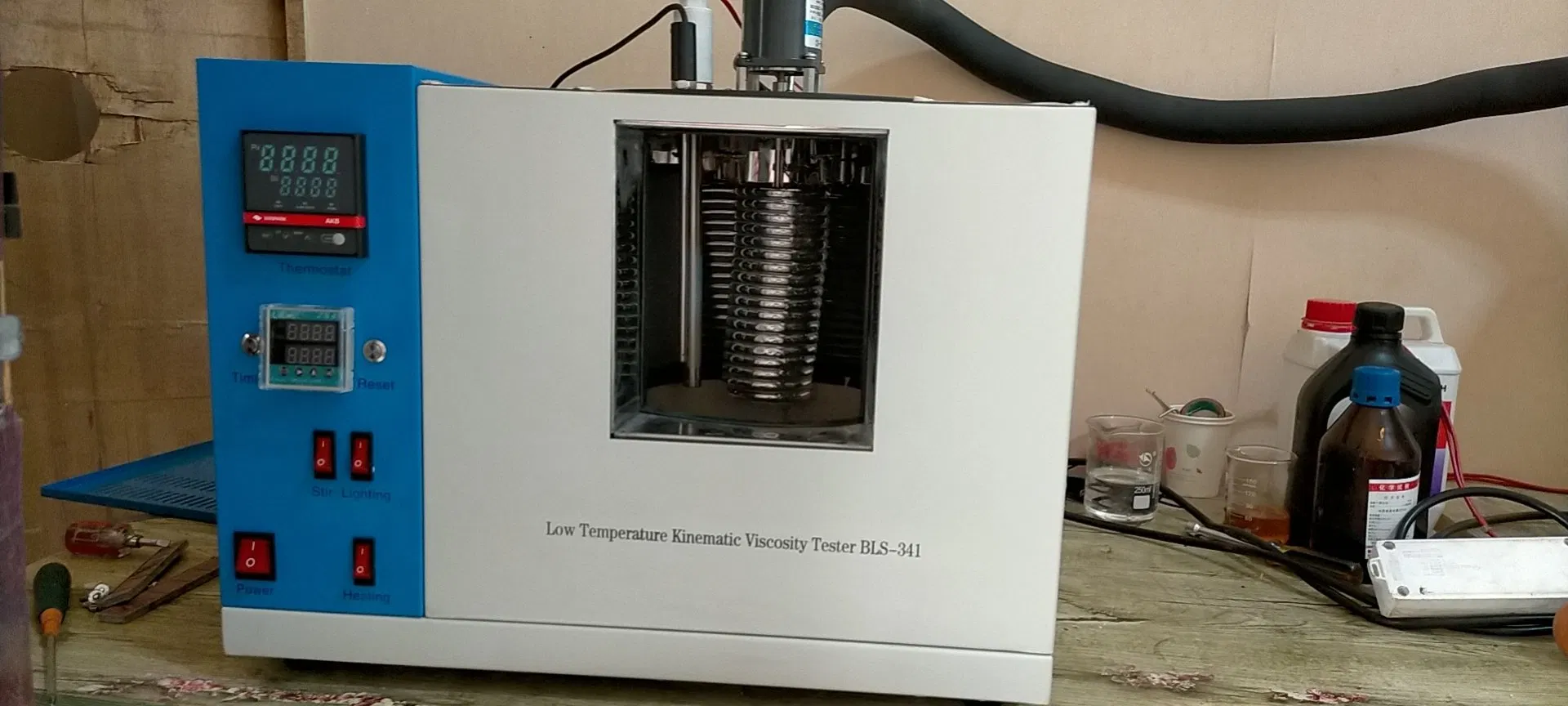

Manual Type Low Temperature Kinematic Viscometer
Application
The manufacturing of this instrument complies with the provisions of the People's Republic of China Industry Standard SY/T5651 and the People's Republic of China Standard GB/T265 "Petroleum Products Kinematic Viscosity Determination Method and Dynamic Viscosity Calculation Method", and conforms to ASTM D341 to determine the kinematic viscosity of liquid petroleum products (referring to Newtonian liquid) at a constant temperature .
Main features
1. The temperature of the constant temperature bath is controlled by temperature controller, and the refrigeration and heating parts compensate for each other to achieve thermal balance, so that the control bath temperature maintains a certain accuracy.

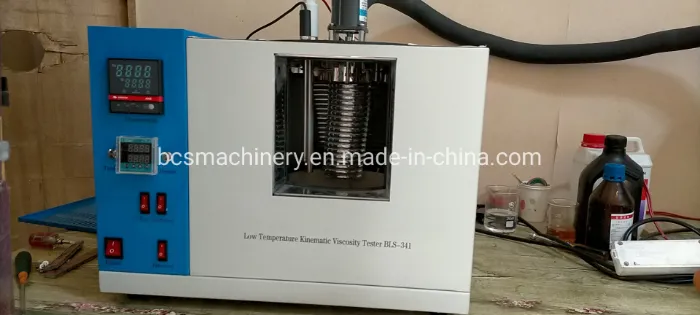

2. There is a fluorescent lighting device on the side of the Dewar flask, which makes the capillary viscometer scale in the constant temperature bath clearer and more convenient for reading.
3. Two samples can be assembled in this instrument for testing at the same time. A stirring motor is installed in the constant temperature bath to keep the temperature in the entire constant temperature bath uniform.
Main technical specifications and parameters

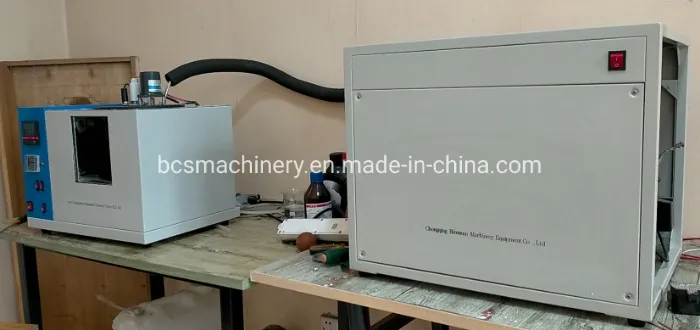

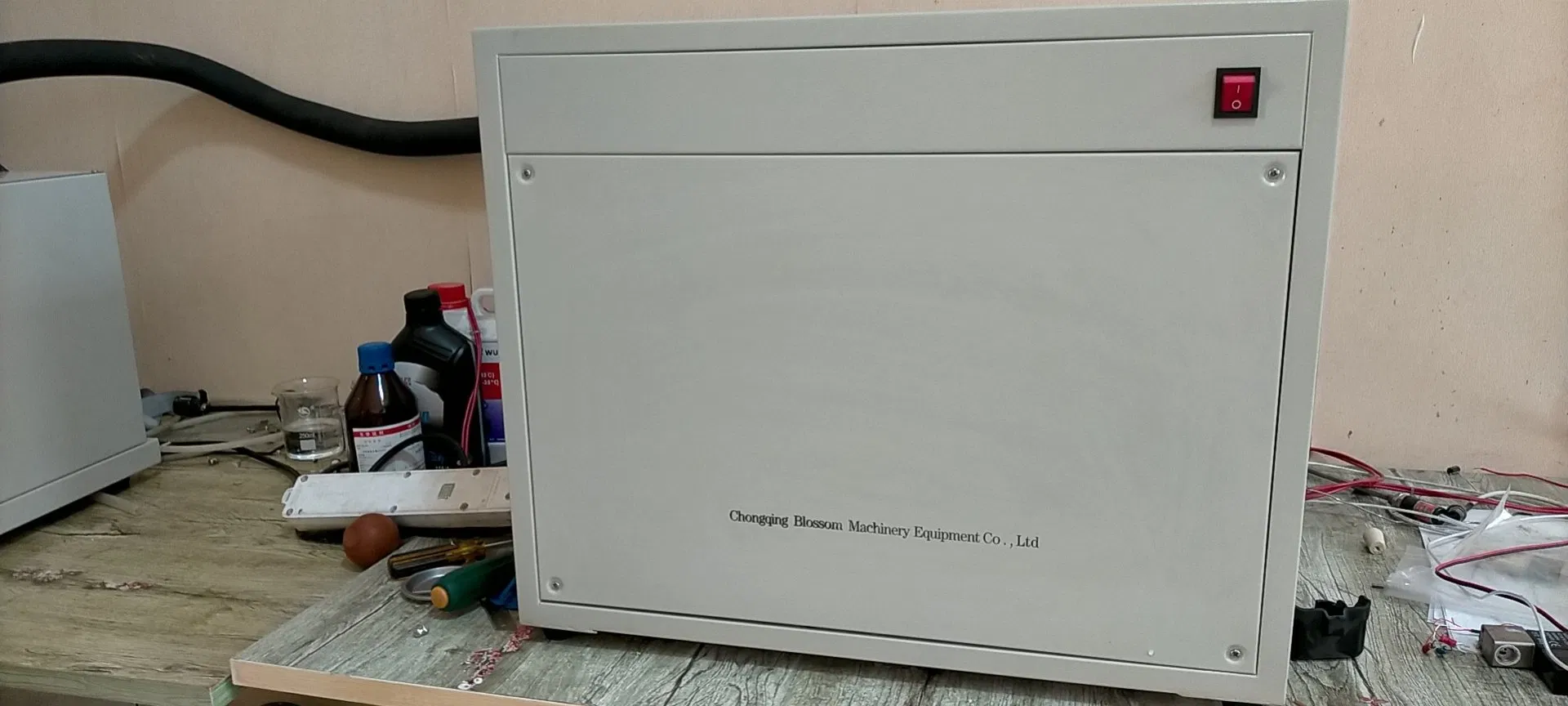

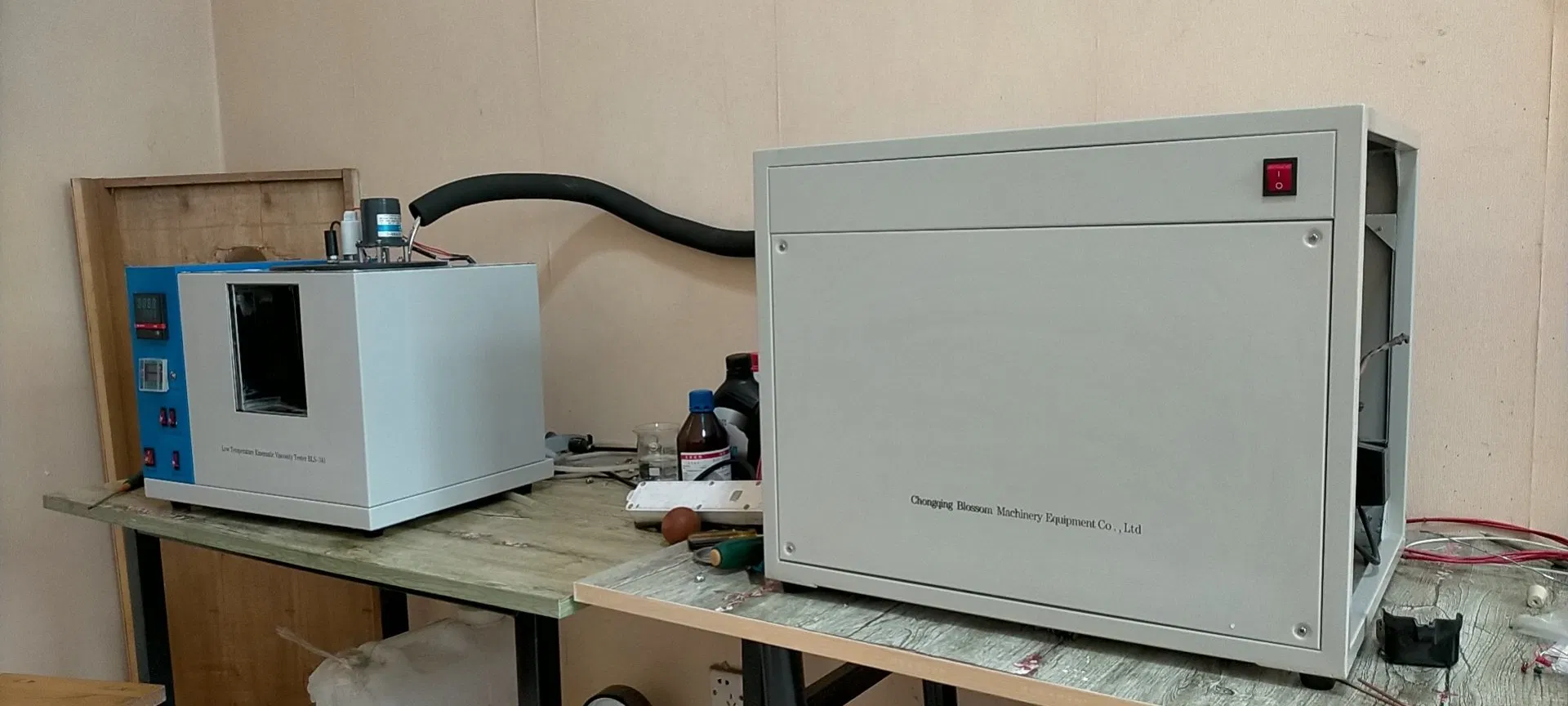

This instrument consists of frequency converter, capillary viscometer, thermometer, electric stirring device, electric heating device, refrigeration device, temperature controller, constant temperature bath and lighting lamp.
1. Power supply: AC220V ± 10%, 50Hz. (External frequency converter) 2. Heating device: electric heater, power 650W. 3. Refrigeration device: William Danforth compressor refrigeration. 4. Stirring motor: power 30W, rotate speed 1200r/min. 5. Temperature measurement range: 80ºC ~ -50ºC. 6. Temperature control accuracy: ± 0.1ºC. 7. Constant temperature bath: stainless steel liner with a capacity of 5.8L. 8. Operating environment: Ambient temperature≤30ºC, relative humidity≤85%. 9. Temperature sensor: Industrial platinum resistance, its index number is Pt100. 10. Capillary viscometer: a set of 5 in total, customer's choice. 12. Power consumption of the whole machine: not more than 1700W. 13. Bathtub type: Vacuum Dewar flask. |
1. Outside package: Standard export packing or neutral packing if needed, carton box, wooden case or upon request, packing carefully.
2. Inside package: strength film and foams.
Shipping Method: Air / Sea / Express(UPS, FEDEX, DHL, TNT, EMS, etc)
Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment and electric hoist, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.

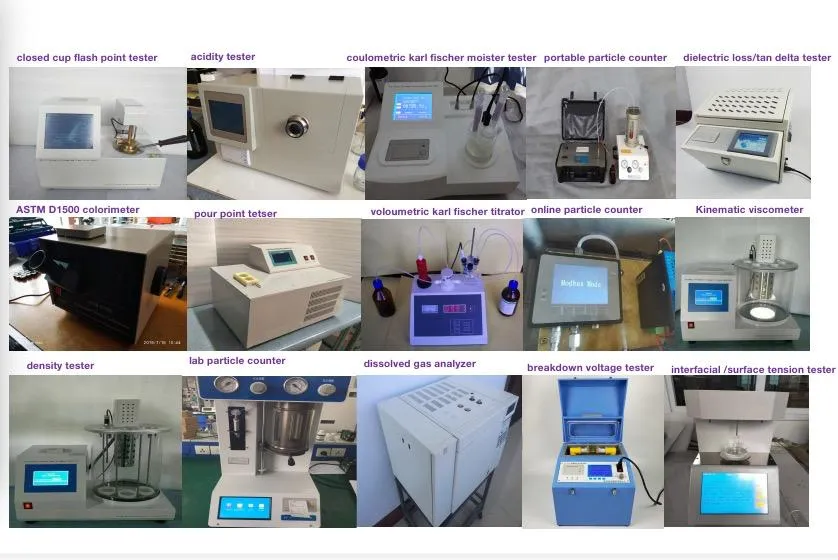

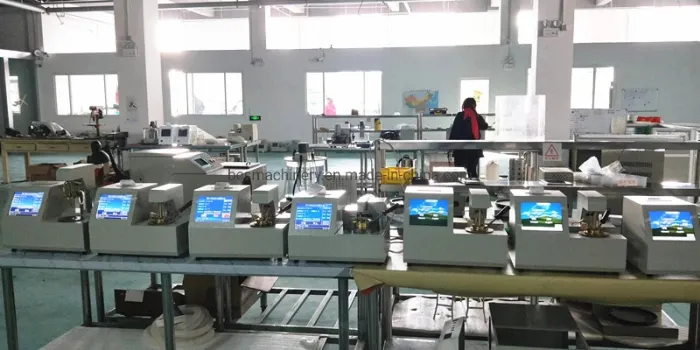

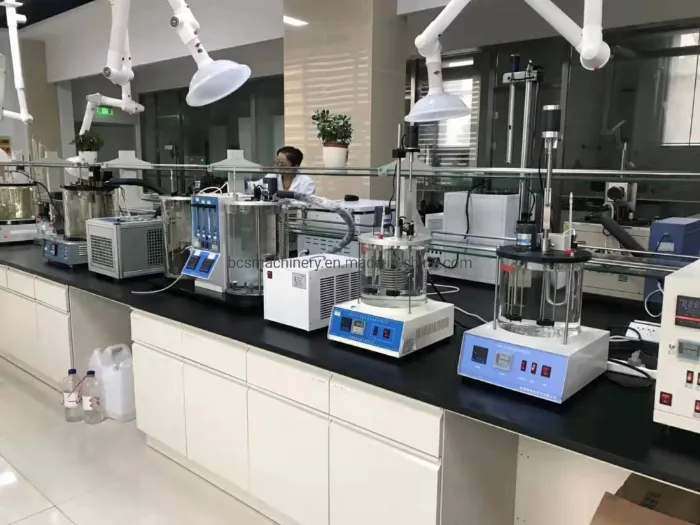

Our Laboratory
CE Certificate
Exhibition
1. What's the payment method?
Payment can be done by cash T/T, L/C, Western Union, Alibaba Trade Assurance,etc.
2. How long is the delivery period?
Generally it takes about 10 working days for production and then the delivery will be done timely.
3.What's the package made of?
The package is made of international export standard wooden case.
4.What's the delivery method?
By train, by air, by sea, by truck, by express, etc.
5. How long is the guarantee period?
The guarantee period is 2 years due to the product quality problems itself.
6.What services can you provide?
Online support through email, telephone, Whatsapp or other communication method; onsite taining and installation if you need; filed maintenance and repair, technical video support, etc.
