Petroleum Products Automatic Digital Density Meter ASTM D1298 by Hydrometer Method
GD-1884 Petroleum Products Automatic Digital Density Meter ASTM D1298 by Hydrometer methodIntroduction:The Density Determinations Apparatus is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products - Laboratory determination of density - Hydrometer method and......
Send Inquiry
Product Description
GD-1884 Petroleum Products Automatic Digital Density Meter ASTM D1298 by Hydrometer method
Introduction:
The Density Determinations Apparatus is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products - Laboratory determination of density - Hydrometer method and ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method.
The Digital Density Meter is used to determine the density of crude petroleum and liquid petroleum.
Features:
1. The Astm D1298 Petroleum Density Meter Densitometer is a kind of all-in-one machine. The control box adopts humanized design. The control switch adopts light-touch mode. It's structure is simple and compact. Easy to operate.
2. The Specific Gravity Meter Hydrometer adopts intelligent LCD temperature controller. The control rate is fast and overstrike is small. The temperature control can reach ±0.2ºC.
3. The Liquid Petroleum Density Tester equips a hard glass vessel and electric stirrer. The temperature in vessel is uniform. Easy to observe the sample.
Specifications:
1. Power supply: AC(220±10%)V,50Hz
2. Dimension of constant temperature bath: Ф300mm×340mm
3. Capacity of cylinder: 500ml
4. Heating power: 700W,1000W
5. Temperature controller:
(1) Range: Ambient to 100ºC
(2) Accuracy: ±0.2ºC
(3) Sensor: Pt100
6. Thermometer: Mercury-in-glass thermometer. Scale division is 0.2ºC.
7. Dimension: 560mm×380mm×580mm

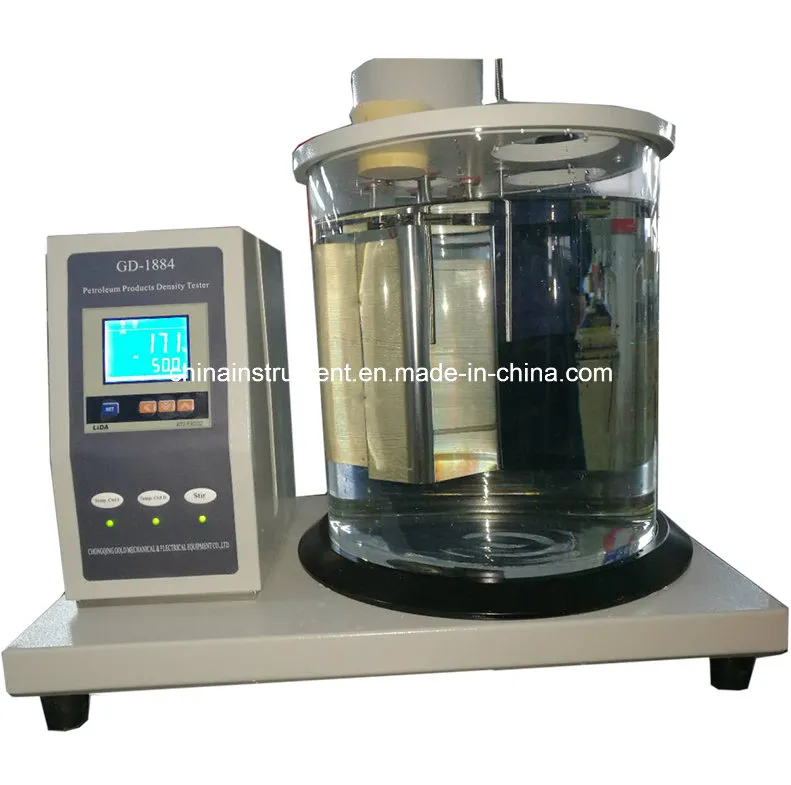

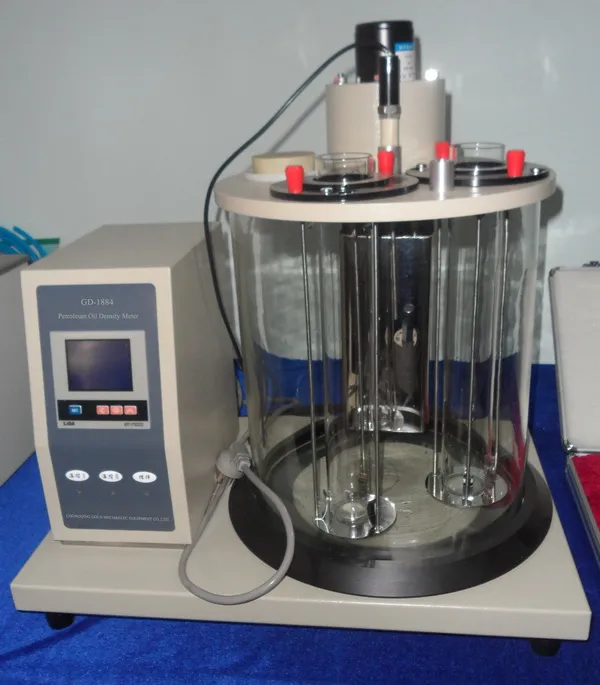

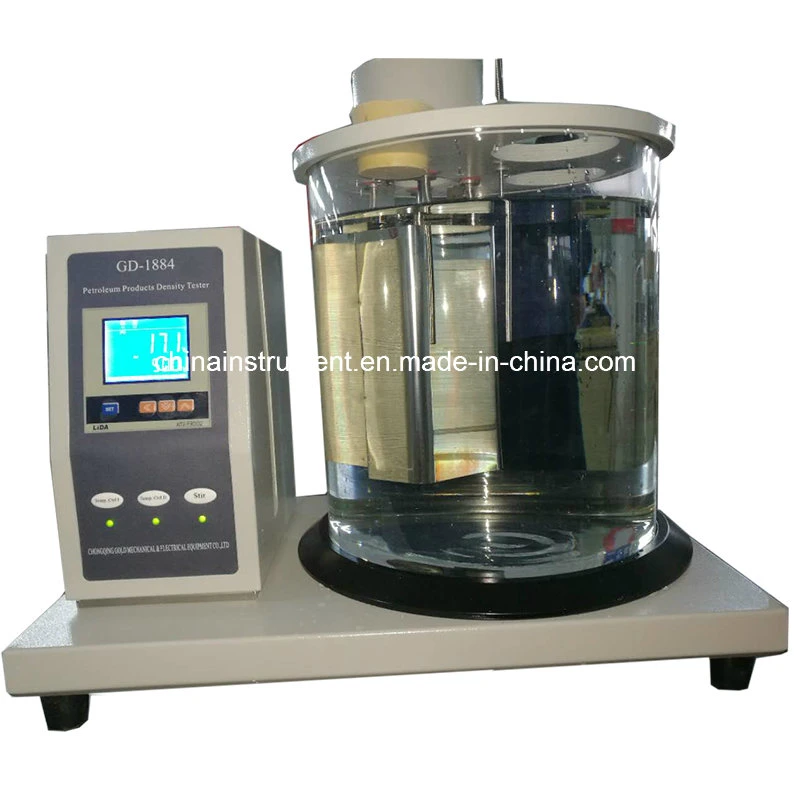

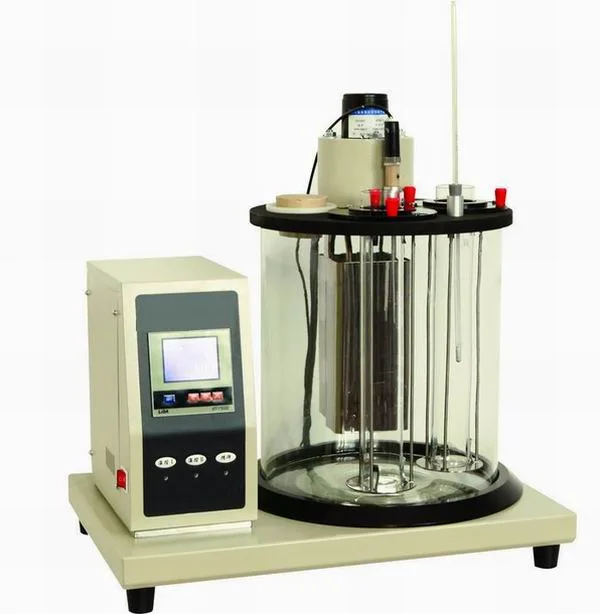

Pictures of Density Meter:
Introduction:
The Density Determinations Apparatus is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products - Laboratory determination of density - Hydrometer method and ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method.
The Digital Density Meter is used to determine the density of crude petroleum and liquid petroleum.
Features:
1. The Astm D1298 Petroleum Density Meter Densitometer is a kind of all-in-one machine. The control box adopts humanized design. The control switch adopts light-touch mode. It's structure is simple and compact. Easy to operate.
2. The Specific Gravity Meter Hydrometer adopts intelligent LCD temperature controller. The control rate is fast and overstrike is small. The temperature control can reach ±0.2ºC.
3. The Liquid Petroleum Density Tester equips a hard glass vessel and electric stirrer. The temperature in vessel is uniform. Easy to observe the sample.
Specifications:
1. Power supply: AC(220±10%)V,50Hz
2. Dimension of constant temperature bath: Ф300mm×340mm
3. Capacity of cylinder: 500ml
4. Heating power: 700W,1000W
5. Temperature controller:
(1) Range: Ambient to 100ºC
(2) Accuracy: ±0.2ºC
(3) Sensor: Pt100
6. Thermometer: Mercury-in-glass thermometer. Scale division is 0.2ºC.
7. Dimension: 560mm×380mm×580mm
Pictures of Density Meter:
