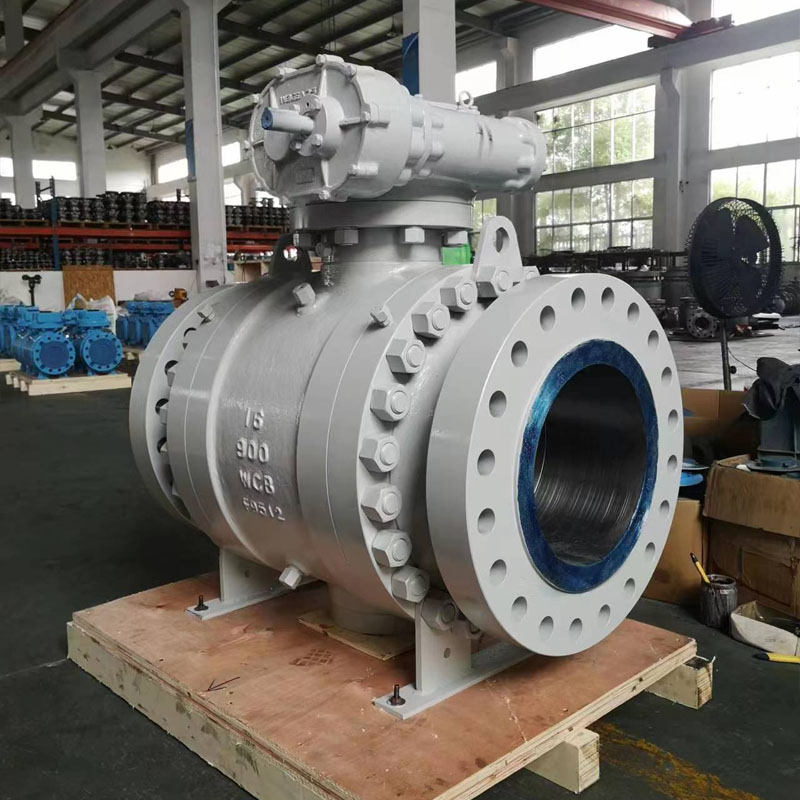

Side Entry Trunnuion Mounted Ball Valve

As the professional valve manufacturer, we would like to provide you the 2 piece floating ball valve, which is a kind of the mostly widely used valve. And we will offer you the best after-sale service and timely delivery.

LYV is an industrial valve manufacturer and supplier in China, with the API 6D , ISO 9001 and CE approved. The side entry ball valves are the ball valves with 2-pc or 3-pc body for the split body construction.

Design & Testing International Standard of Two piece ball valve

Design Standard : BS EN ISO 17292 (BS 5351) / ASME B 16.34 /API 6D

Inspection & Testing Standard : API 598/ API 6D

Fire Safe Testing Standard : API 607/API 6FA

Flange To Flange Length : ANSI B 16.10 -Short pattern/ Long pattern

End Connection : Flanged End to ANSI B 16.5, Butt Weld ends, Stock Weld ends.

Manufacturer Size and Pressure Range:

NPS 1/2” to 48” (for ANSI Class 150LB)

NPS 1/2” to 48” (for ANSI Class 300LB)

NPS 1/2” to 48” (for ANSI Class 600LB)

NPS 1/2” to 36” (for ANSI Class 900LB)

NPS 1/2” to 24” (for ANSI Class 1500LB)

NPS 1/2” to 12” (for ANSI Class 2500LB)

or

DN15 to DN1200 (for PN0.6Mpa, 1.6Mpa, PN2.0Mpa, PN2.5Mpa)

DN15 to DN1200 (for PN4.0Mpa, PN5.0Mpa)

DN15 to DN1200 (for PN6.3Mpa, PN10.0Mpa)

DN15 to DN900 (for PN15.0Mpa)

DN15 to DN600 (for PN25.0Mpa)
