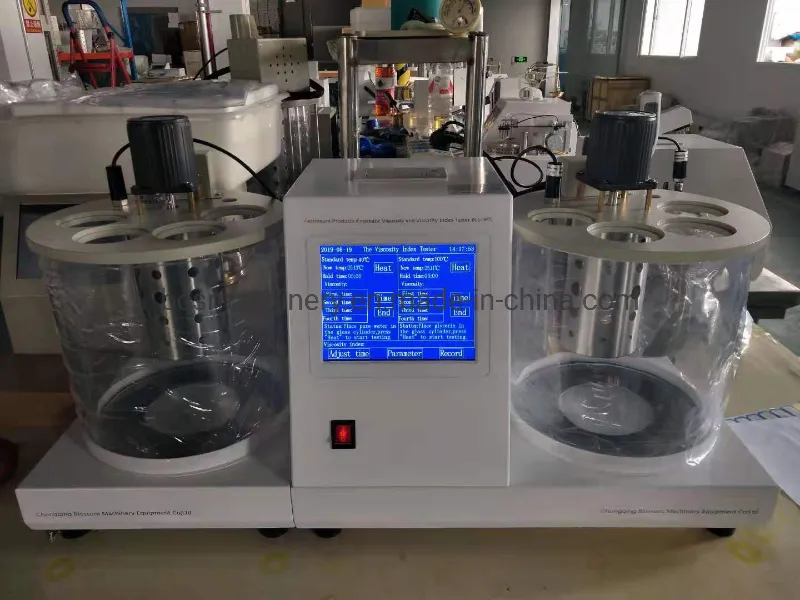

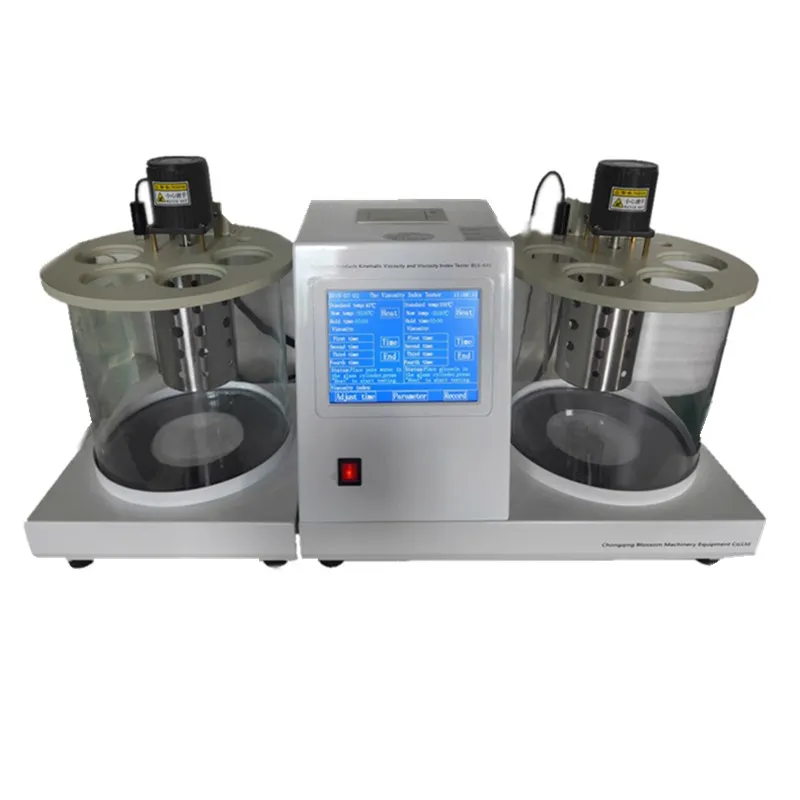

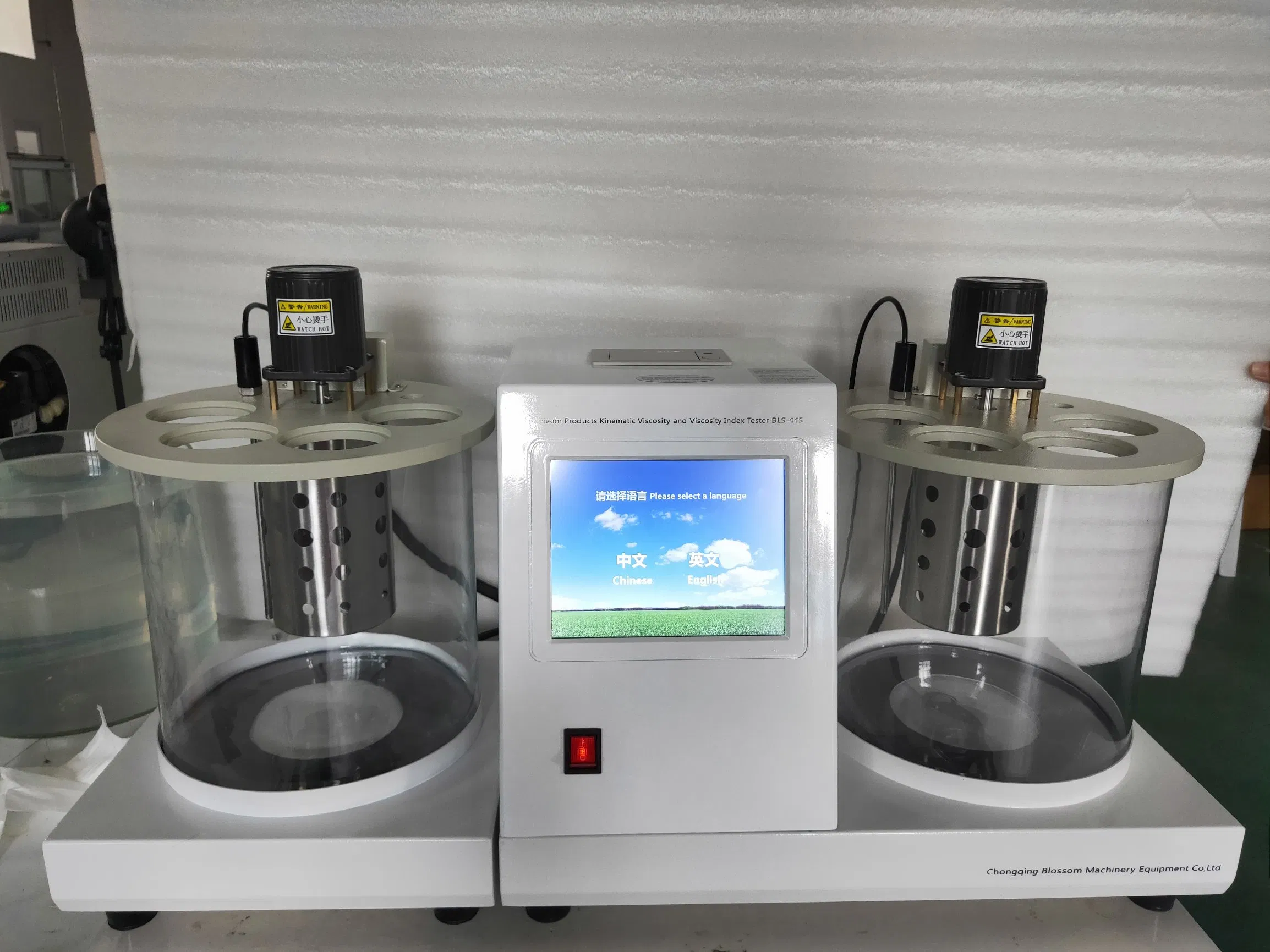

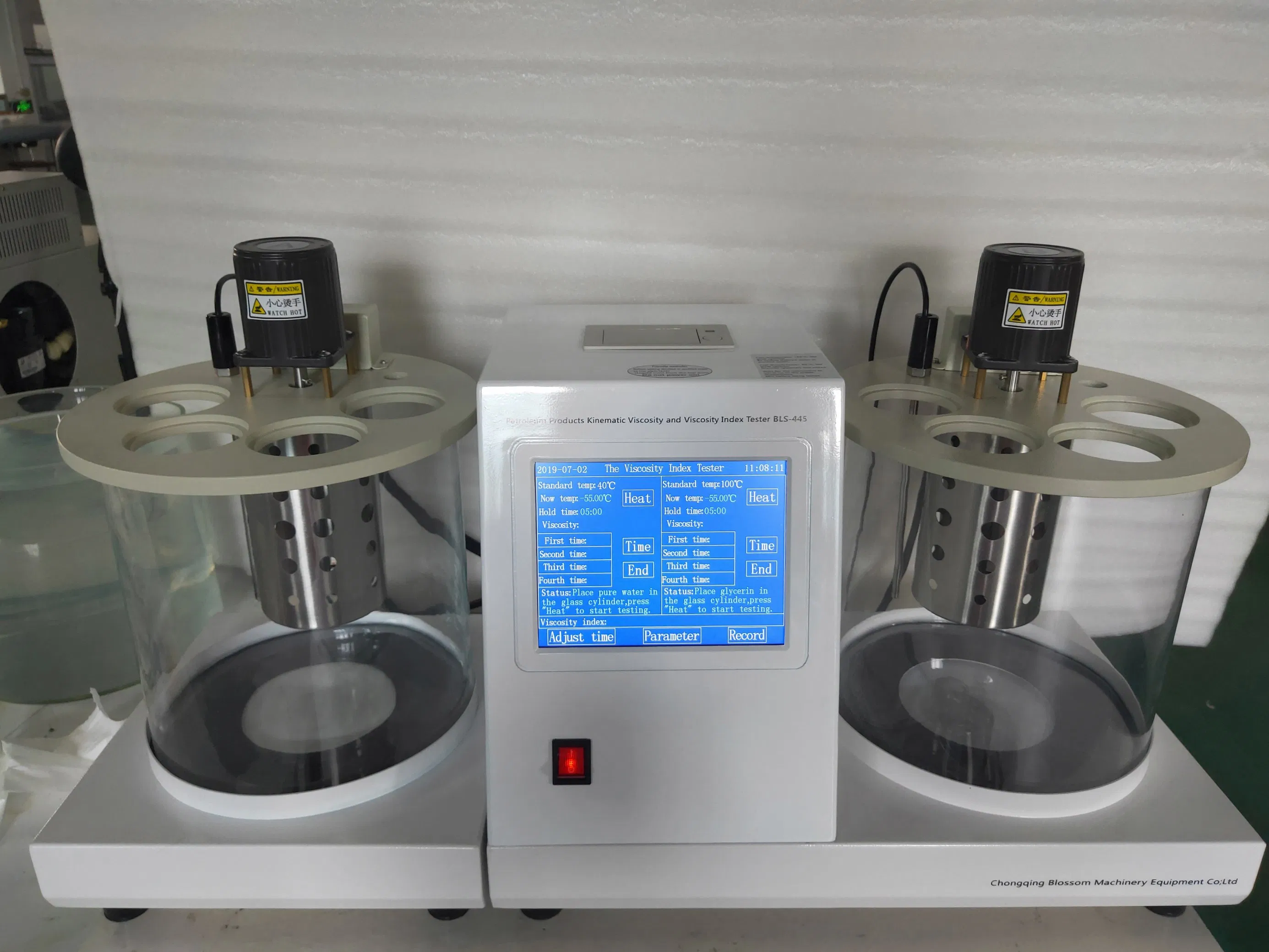

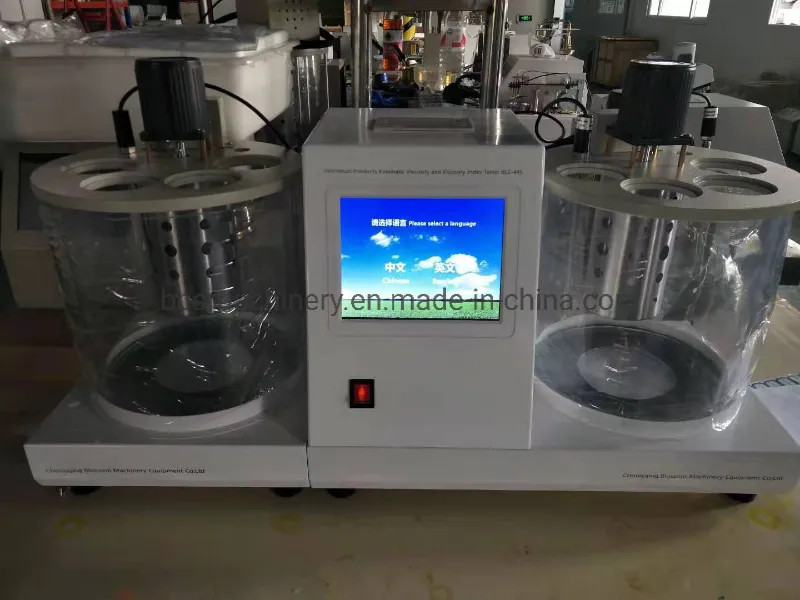

Automatic Transformer Oil Viscosity and Viscosity Index Testing Equipment
Product DescriptionAutomatic Transformer Oil Viscosity and Viscosity Index Testing EquipmentApplicationThe instrument complies to ASTM D445, ASTM D2270 and national standard GB265-88. It adopts advanced single-chip control, English display, automatic results printing and uniform temperature of the......
Send Inquiry
Product Description
Application
The instrument complies to ASTM D445, ASTM D2270 and national standard GB265-88. It adopts advanced single-chip control, English display, automatic results printing and uniform temperature of the constant temperature bath. Four viscometers can be placed at the same time. It can also be used to perform other experiment as high viscosity constant temperature bath.
Main Features
1.The instrument adopts advanced single-chip intelligent temperature control, timely temperature display working status such as time and other parameters;
2.It has outer plexiglass insulation cover with uniform temperature distribution in the bath, which has good temperature control effect;
3.Four samples can be simultaneously used for the test, which makes the experiment faster and more convenient;
4.The heater and other components are made of stainless steel that is resistant to corrosion and durable. It has LED lighting with long service life and is easy to observe;
5.The capillary meter card adopts three-point vertical type, which is flexible and convenient to operate with tight clamping.
6.Automatic calculation of kinematic viscosity values and test averages, and automatic printing and storage of measurement results;
7.The number of experiments can be freely adjusted for 1-6 times, and parallel experiments can be performed on two or more oil samples at the same time.
Technical Parameters
| Display | English LCD display |
| Temperature control range | Arbitrarily set from room temperature to 110 °C; |
| Temperature control accuracy | ±0.01 °C or ±0.1 °C, optional |
| Timing accuracy | ±0.1S |
| Timing range | 0.1S-999.9S |
| Thermostatic bathtub | 250×250mm |
Printer | Low-power consumption thermal printer with paper width 56mm |
| Temperature measurement element | Imported precise platinum resistance |
| Stirring speed | 1520 rpm |
| Maximum power | Main heating: 600W;auxiliary heating: 1000W |
| Sampling number | 4 |
| Working environment | Ambient temperature:15--35ºC;ambient humidity< 85% |
| Power supply | 220V ±10%50Hz±1Hz(can be customized) |
| Dimensions | 560×370×520mm(L×W×H) |
| Weight | About 22Kg |

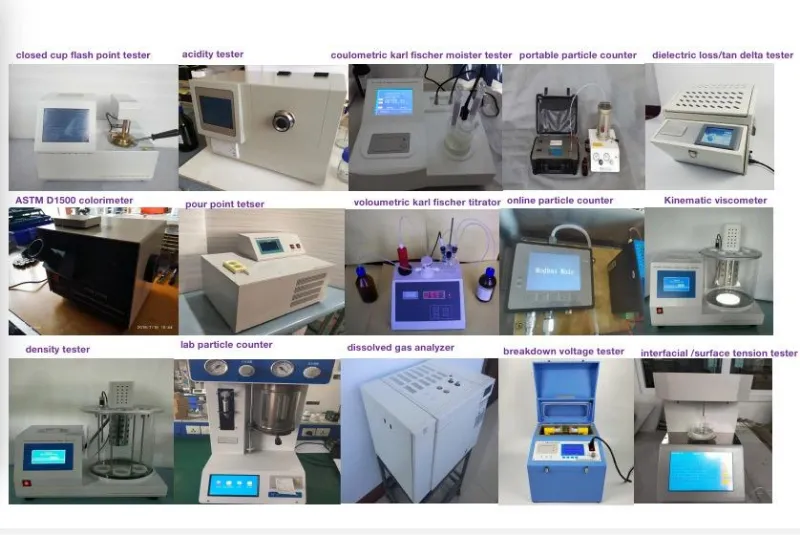

1. Karl Fisher Transformer Oil Water Content Tester BLS-6304
2.Digital Oil Moisture Meter BLS-D6304
3.Automatic Transformer Oil Kinematic Viscosity and Viscosity Index Tester BLS-445
4.Automatic Transformer Oil Kinematic Viscosity Meter BLS-V445
5.Transformer Oil Acidity Meter BLS-974
6.Transformer Oil Cleveland Open Cup Flash and Fire Point Tester BLO-92
7.Manual Type Transformer Oil Cleveland Open Cup Flash and Fire Point Tester BLO-M92
8.Transformer Oil Pensky-Martens Closed Cup Flash Point Tester BLC-93
9.Manual Type Transformer Oil Pensky-Martens Closed Cup Flash Point Tester BLC-M93
10.Transformer Oil Pour Point and Cloud Point Tester BLS-97
11.Transformer Oil Density Meter BLS-1298
12.Digital Transformer Oil Density Meter BLS-D1298
13.Transformer Oil Colorimeter BLS-1500
14.Transformer Oil Breakdown Voltage/ Dielectric Strength Tester BDV-165
15.Dielectric Loss/ Volume Resistivity Tester/Tan Delta/ Power Factor Tester BLS-924
16..Fully Automatic Interface/ Surface Tensiometer BLS-971
17.Transformer Turn Ratio Tester BLS-901
18.Winding Resistance Tester BLS-10

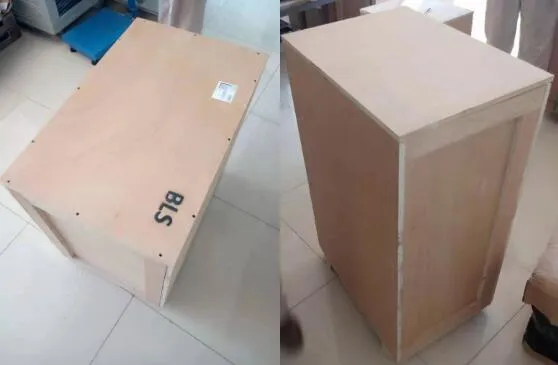

1. Outside package: Standard export packing or neutral packing if needed, carton box, wooden case or upon request, packing carefully.
2. Inside package: strength film and foams.
Shipping Method: Air / Sea / Express(UPS, FEDEX, DHL, TNT, EMS, etc)

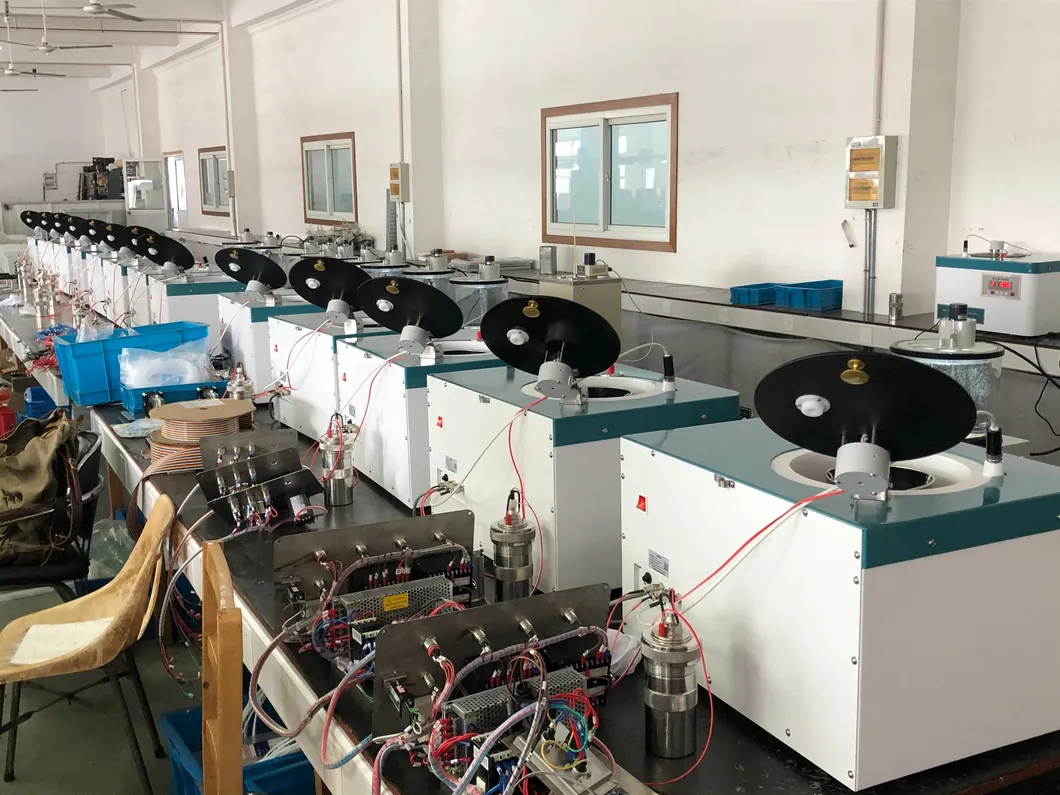

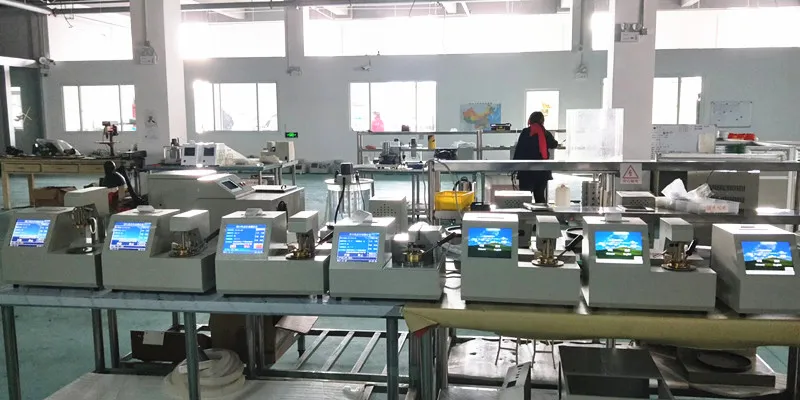

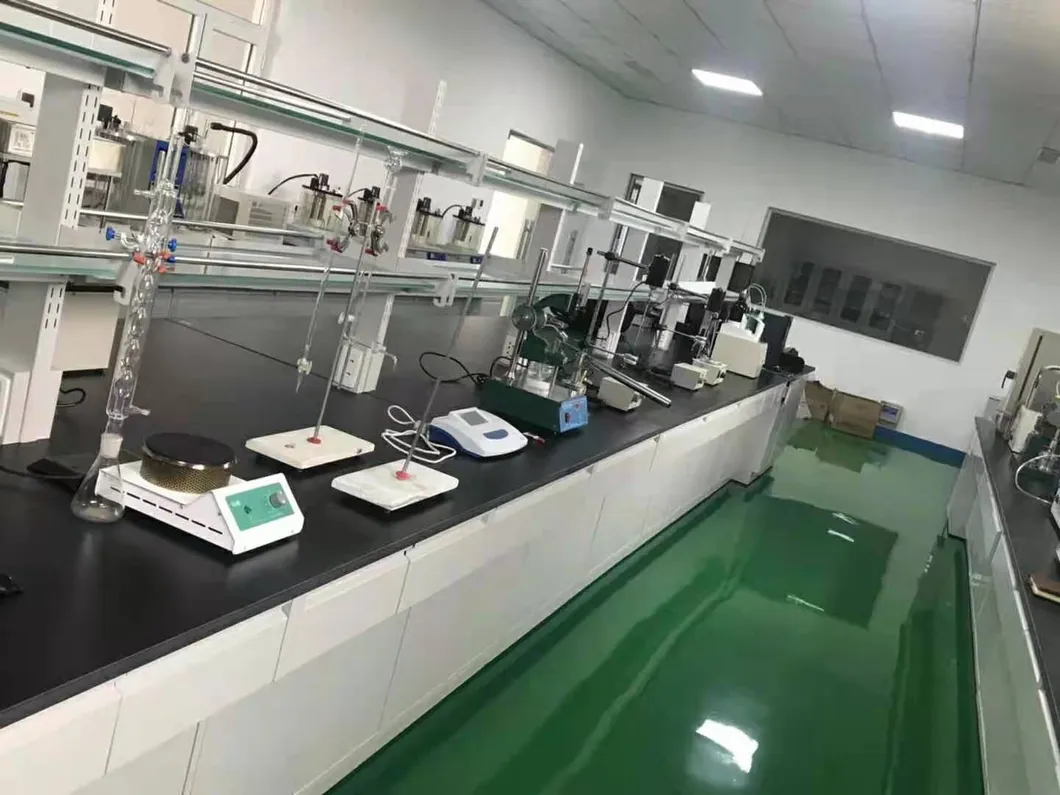

Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment and electric hoist, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.
